Quantum mechanics (QM – also known as quantum physics, or quantum theory) is a branch of physics which deals with physical phenomena at microscopic scales. It departs from classical mechanics primarily at the quantum realm of atomic and subatomic length scales. Quantum mechanics provides a mathematical description of much of the dual particle-like and wave-like behavior and interactions of energy and matter. In most contexts, the term 'Quantum Mechanics' does not refer to theories that incorporate Einstein's theories of Relativity. [1]

What is Quantum Mechanics and what is Old Quantum Mechanics?

The 1927 Solvay Conference in Brussels.

Old quantum theory is a collection of results from the years 1900–1925 which predate modern Quantum mechanics. Although the theory was never complete or self-consistent, it yielded enough successes to establish that the classical Newtonian view of particle motion was insufficient. In 1926 Erwin Schrödinger found a completely quantum mechanical wave-equation, which reproduced all the successes of the old quantum theory without ambiguities and inconsistencies. [2] At approximately the same time a matrix version of the theory was developed, and eventually the two versions merged to become equivalent. This essay focuses on the more accessible wave version.[3]

When is a system in the quantum realm?

Classical physics is usually concerned with everyday conditions: speeds much lower than the speed of light, and sizes much greater than that of atoms. Modern physics is usually concerned with high velocities and small distances.

The Planck constant (denoted h) is a physical constant that appears throughout the theory of quantum mechanics, but that has no basis in the classical physics of Isaac Newton. The units of Plank's constant can be expressed as either, [energy]·[time], or as [mass]·[velocity]·[length]; (both are called action). A particle is likely to be in the quantum realm if either the mass, speed, or length is small:

  • Electrons have less mass than protons or neutrons. For this reason, the electrons in an atom must be modeled by a quantum theory, but we have the option of treating the nucleus as a stationary and classical object at the center.[4]
  • Electrons confined to a small space, such as the atom (typically 10-10 meters) will exhibit quantum effects.
  • Atoms move very slowly when they are very cold. Quantum effects can occur at very low temperatures.[5]

Timeline

  • 1947 – Lamb shift measured, confirming quantum electrodynamics (QED).[17]
  • 1948 – QED developed by Feynman, Schwinger, and Tomonaga.[18]
  • 2001 – First experimental demonstration of Shor's algorithm.[26]
  • 2022 – Nobel Prize awarded for experimental tests of Bell inequalities.[30]
  • 2024 – Continued progress in scalable quantum processors and error correction.[32]
  • 2025 – Ongoing development of fault-tolerant quantum computers and quantum networks.[33]

Black-body radiation 1900

A black body.

Old quantum theory came into existence in 1900 with a calculation by Max Planck that precisely matched the observed patterns of black-body radiation. He used the hypothesis that energy is radiated and absorbed in discrete "quanta" (or "energy elements"). In Planck's theory, the constant emerged as a relation between the energy (E) and the frequency (f) associated with the interaction of light with the walls of the back body. This relation is called the Planck relation:

E=hf.









(Eq. 1)

Planck (cautiously) insisted that this was simply an aspect of the processes of absorption and emission of radiation and had nothing to do with the physical reality of the radiation itself.[34] In fact, he considered his quantum hypothesis a mathematical trick to get the right answer rather than a sizeable discovery.

This equation predicts that photon energy is directly proportional to frequency; if you double f then E doubles. Frequency is inversely proportional to wavelength (since the speed of light is

c=fλ

where λ (lambda) is the length of a wave.


How Planck constructed his model and performed his calculation is beyond the scope of this essay.

Photoelectric Effect 1905

This depiction of photons (red) striking a metal plate and emitting photoelectrons serves to illustrate what cannot be seen.

In 1905 Albert Einstein published a paper that explained experimental data from the photoelectric effect that occurs when light strikes a metal surface. The photoelectric effect is the emission of an electron from a substance when light is absorbed. electrons are emitted from solids, liquids or gases when they absorb energy from light. Electrons emitted in this manner may be called photoelectrons. His hypothesis was that the photon's energy frequecy obeyed E=hf (i.e. Eq. (1) ). Each photon was assumed to give all of its energy to a single electron, and the energy of this electron could be measured by measuring the voltage required to keep the electron from escaping from the metal.

More links on the Photoelectric effect

Taylor makes things spooky with very dim light in 1909

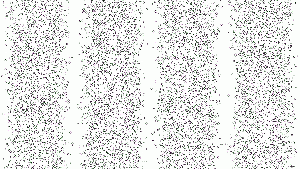

Interference occurs even when particles pass one at a time.

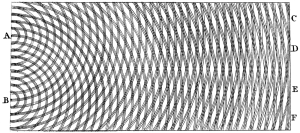

Young's original drawing was used to make specfic predictions of the diffraction pattern for a given wavelength.
We know light is a wave because it interferes with itself when passing through two slits.

While studying medicine at Göttingen in the 1790s, Thomas Young wrote a thesis on the physical and mathematical properties of sound[35] and in 1799, he presented a paper to the Royal Society where he argued that light was also a wave. His idea was furiously opposed because it contradicted Newton, whose views were considered sacred. Nonetheless, he continued to develop his ideas. In 1801, he presented a famous paper to the Royal Society entitled "On the Theory of Light and Colours" [36] which described various interference phenomena, and in 1803 he performed his famous double-slit experiment (strictly speaking, a double hole experiment).

Diffraction occurs also with water and sound. Diffraction allows one to measure wavelength, and the same value of wavelength occurs for diffraction through single slits, double slits, and N-slits. The results are consistent with diffraction through a circular hole.

This experiment was repeated 100 years later by G. I. Taylor in light so dim that only one photon at a time was likely to be involved with the interference. Amazingly, one photon can interfere with itself. Shown in the figure to the right is a simulated animation of what is observed. Since the photons are passing one at a time, a time gap separates when each particle strikes the screen and creates a black dot. [37] The experiment has been repeated in recent years with electrons, atoms, and even molecules containing over 800 atoms.[38]

Bohr-Rutherford Model 1913

Here, E = E2-E1, is the energy lost by the electron as it "falls" from high to low energy.

The Bohr model, introduced by Niels Bohr in 1913, depicts the atom as a small, positively charged nucleus surrounded by electrons that travel in circular orbelits around the nucleus—similar in structure to the solar system, but with attraction provided by electrostatic forces rather than gravity. The Bohr model is a primitive model of the hydrogen atom that has been surpassed by the more sophisticated Schrodinger's equation. Nevertheless, Bohr's calculation should be viewed as more than a lucky guess. A guess based on dimensional analysis using a new and controversial fundamental constant is also an educated guess. The Bohr model assumes circular orbits of radius, v, and follows Newton's laws of physics, but with the following two embellishments to Newton's theory:

nλ=2πr(n=1,2,3,)









(Eq. 2)

λ=h/p,









(Eq. 3)

and p=mv is momentum. Lambda, or λ, is now known as the De Broglie wavelength (although Bohr did not use the De Broglie wavelength to construct this model.) For an electron of mass ,m and velocity v, p=mv.[39]

Only the orbit on the left satisfies Bohr's conditions for an "allowed" orbit.
These standing waves somewhat resemble electrons in the Bohr model. The momentum, and hence the speed and energy of each "orbit" can be calculated from the wavelength.


The meaning of allowed orbits can be discerned from the pair of figures situated to the left. The wavelength must be such that the number that fit into a full circumference (2пr) must equal one, or two, or 3, or 4 (and so forth). In one case, the wave fits perfectly in the circles (with exactly four wavelengths). This corresponds to an electron in the third excited state, or n =4. The other wave does not fit into its allowed radius because it doubles over itself. This energy level does not exist for this atom.

Planck's relation (i.e. Eq.(1)) holds for the photons that are emitted from the hydrogen atom, with the photon energy, E, being equal to the difference in energy between the two electron orbitals. This can be expressed as an energy conservation law:

E2E1=hf ,

where E2 is the higher energy and is E2 the lower energy of the atom. These energies were calculated using Newton's laws of physics, just as one would calculate the energy of a satellite orbiting the Earth. The frequency of the light, f, could be measured by passing light the very hot gas (glowing) through a prism and measuring the wavelength.

While equations(1), (2), and (3) seem to embody all the calculations of Old Quantum Mechanics, they oversimplify the lines of reasoning actually used. Bohr, for example, did not use equation (3). And he wrote (2) not as a statement about "allowed" wavelengths, but about the quantization of angular momentum (L = mvr= nh/(2π)). In fact, the wave behavior of matter particles such as the electron (i.e., matter waves) was not suspected in 1913, and at that time Bohr did not believe in the existence of photons. [40]

Compton Effect 1923

Compton scattering is like this, but in two dimensions and relativistic.
A photon of wavelength λ comes in from the left, collides with a target at rest, and a new photon of wavelength λ emerges at an angle θ.

More evidence that Eq.(3) also holds for the momentum of an individual photon was provided by Arthur Holly Compton in 1923. Since the photon is generally understood to be massless, the momentum, p, of the photon is not equal to mv, but equal to hf/c, where c is the speed of light. The calculation of Compton scattering is a bit more difficult than those collisions usually studied in an undergraduate physics course because it is necessary to perform a relativistic calculation. Nevertheless, the calculation can be performed and predictions were confirmed by experimental observation.

de Broglie Waves 1924

Template:Cquote

How would these structures appear to move if an observer were moving alongside it? How big would they be? How fast would they be moving?.

Today, the de Broglie relations[41] are more likely to be expressed using different variables. Instead of h, it is more common to use =h/2π (pronounced "h-bar"). Also, k=2π/λ is defined as the wavenumber, ω=2πf is the angular frequency. In these variables, we have p=mv=k, and E=ω.


Although we are using the de Broglie relations within the context of the non-relativistic quantum theory, much of de Broglie's argument was based on Einstein's theory of special relativity, which describes how length, time, mass and energy are perceived by observers who are moving relative to one another. The figure on the left shows the crests and troughs of a travelling wave (in blue and red). Einstein's special theory of relativity inertial reference frames describes how different observers (moving at different speeds) will perceive length, time, speed, momentum, and energy. Self-consistency is possible only if frequency-wavenumber is proportional to energy-momentum. Mathematically, De Broglie derived only the need for this proportionality, not its value. But it was clear that ħ is that constant.

Schrödinger Wave Equation 1926

Some trajectories of a harmonic oscillator (a ball attached to a spring) in classical mechanics (A–B) and quantum mechanics (C–H). In quantum mechanics (C–H), the ball has a wave function, which is shown with real part in blue and imaginary part in red. The trajectories C,D,E,F, (but not G or H) are examples of standing waves, (or "stationary states"). Each standing-wave frequency is proportional to a possible energy level of the oscillator. This "energy quantization" does not occur in classical physics, where the oscillator can have any energy.
This illustration illustrates how a simple wavepacket moves through space.

Schrödinger put forth a wave equation that gave the correct energy levels of the hydrogen atom in 1926. [42] At last we have an equation from which a fundamental wave theory of quantum mechanics might be constructed.

itΨ(𝐫,t)=[22m2+V(𝐫,t)]Ψ(𝐫,t)









(Eq. 4)

Although Heisenberg, Born, and Jordan had already developed a parallel effort using matrices that would prove to be a mathematically equivalent theory[43]), we shall take this as the starting point in our quest for a fully developed theory. While this equation looks intimidating to a novice, it is a standard wave equation that is in many respects simpler than Maxwell's Equations. It is completely deterministic, meaning that it allows one to predict how a wave will evolve (given initial conditions). In other words, like Newton's F=ma, equation (4) predicts the future of the wave amplitude (We shall soon discover that predicting future values of ψ is not necessarily the same as predicting the future behavior of the particle.)

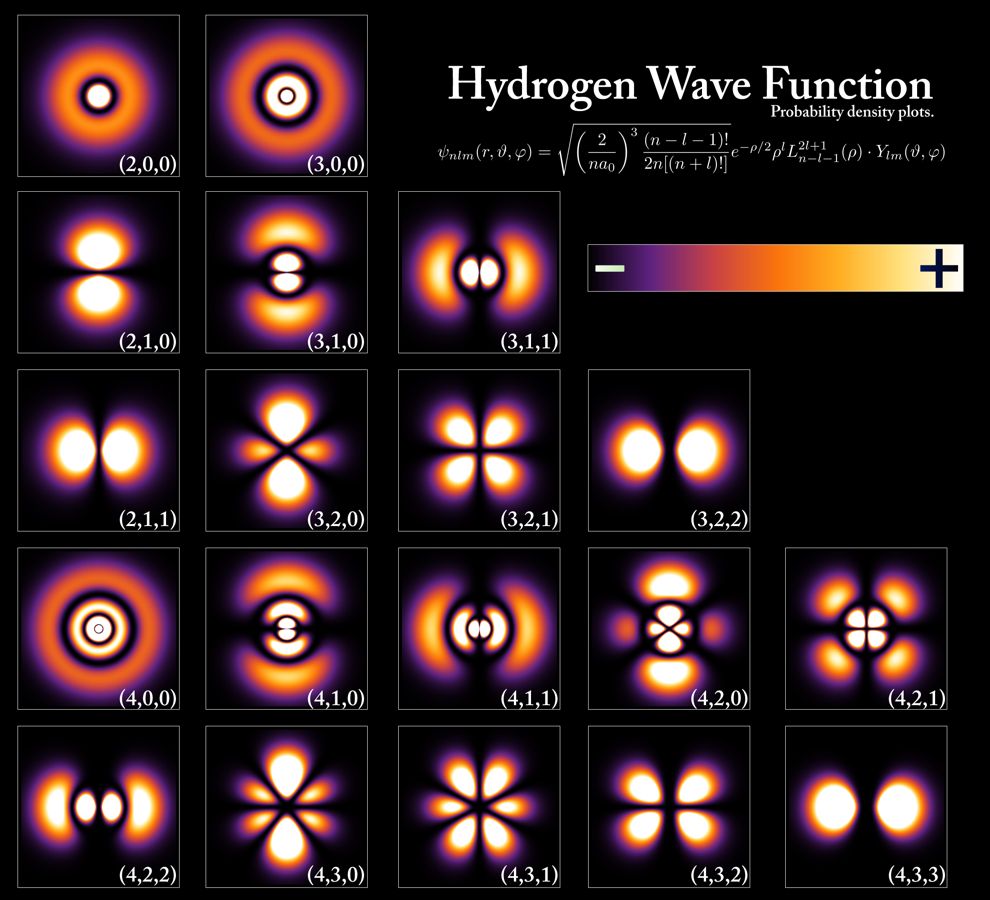

The electron probability density for the first few hydrogen atom electron orbitals shown as cross-sections. These orbitals form an orthonormal basis for the wave function of the electron. Different orbitals are depicted with different scale.

To the left are some computer generated solutions Schrödinger's equations for a (very tiny) mass attached to a spring. The symbol, ψ, is spelled psi, but often pronounced "sigh", with a hint of "p" at the beginning. It can also be pronounced "psee". It is called the "wavefunction", and is essentially the "amplitude", analogous to the "height" of the wave. The wavefunctions C through F represent states of known energy not unlike the "allowed" orbits of the Bohr atom. Wavefunctions G and H are more complicated and have no counterpart in Bohr's model of "allowed" states. They are known as "mixed energy" states.

What is the nature of the Wavefunction?

The Schrödinger equation details the behavior of ψ but says nothing of its nature. Schrödinger unsuccessfully tried to interpret it as a charge density. [44] More specifically it seemed plausible to interpret the square of the amplitude, |ψ|2, as a charge density, since the total charge can be shown to remain constant if ψ obeys Schrödinger's equation. Schrödinger always opposed a statistical or probabilistic approach, with its associated discontinuities—much like Einstein, who believed that quantum mechanics was a statistical approximation to an underlying deterministic theory— and never reconciled with the Copenhagen interpretation. In 1926, Max Born successfully interpreted ψ as the probability amplitude, whose absolute square,|ψ|2, is equal to probability density. [45] .[46] Like charge, probability also obeys a conservation law, namely that the sum of all probabilities always adds to 1 (i.e., 100%)

Even though Schrödinger is (correctly) credited with inventing this wave equation, a connection between waves and particle motion was understood as early as 1834 when Hamilton wrote equations that describe the path taken by light in the approximation that the wavelength is very small.

Davisson–Germer's accidental diffraction of electrons 1927

Davisson (left) and Germer (right)

While attempting to clean an oxide film off of nickel surface, Davisson and Germer heated the specimen to high temperature, not knowing that this would create large single crystal big enough to caused diffraction of their electron beam.[47][48]

Heisenberg's uncertainty principle 1927

Have you ever noticed that you can't ask a person what they are thinking without changing what they are thinking about? Here is what one of the founders of Quantum Mechanics had to say:

Template:Cquote

Heisenberg came up with more convincing understanding that learning about something changes it in an unpredictable way. His argument imagined a powerful but hypothetical microscope that could see the electron as it orbited around the nucleus. Combining his knowledge of optics with the Compton Effect, Heisenberg concluded that the light required to see the electron would drastically change its orbit. And if the light were gentle, with low-energy photons, the microscope would yield an image so blurred that it would be impossible to track the electron's path.

Measuring a particle at rest in a dark room

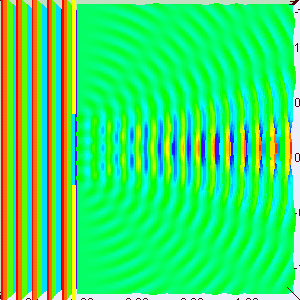

Numerical approximation of diffraction pattern from a slit of width equal to wavelength of an incident plane wave in 3D spectrum visualization

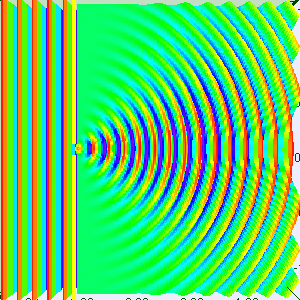

Numerical approximation of diffraction pattern from a slit of width equal to five times the wavelength of an incident plane wave in 3D spectrum visualization

Suppose you are in large dark room with an electron that is known to be at rest. You want to measure its location. The room must be dark because light would interact with and induce motion in the electron. So you put a small hole in a large flat sheet and wave the sheet past where you think the electron is (there is of course no air in the room.) If the electron hits the sheet, your measurement was a failure. But if you repeat the experiment often enough, you will eventually succeed and have knowledge about where the electron is located. Since your sheet never touched the electron, is still at rest, right? Wrong!--No force ever acted on the electron; but nevertheless the electron has now been set in motion! Moreover, you don't know exactly how it is moving.

To understand why, put yourself reference frame of your flat sheet. The sheet is now at rest and an electron is moving towards it. By the de Broglie hypothesis, this electron will have wavelength (given by Eq. (3) to be h/mv). But if the electron acts as a wave, it will undergo single slit diffraction as shown in the figures to the left and right. Notice how decreasing the diameter of the hole increases the motion the spreading of the wave. The more you know about the position, the less you know about the motion, and vice versa. With a bit of basic algebra, the well-known equation for single slit diffraction can be shown to be consistent with the following inequality:

σxσp2









(Eq. 5)

where σx, is the uncertainty in position, and σp is the uncertainty in momentum, p=mv. (The symbol σ is called "sigma"). Equation (5) is known as Heisenberg's uncertainty principle, and renowned theoretical physicists have spent hours attempting to violate it. Under the Copenhagen interpretation of quantum mechanics, it can be proven as a mathematical theorem.

Copenhagen interpretation

Delocalization of waves: What attribute of a particle can be in two places at the same time? Probability!

The image to the left illustrates a simple argument for a probabilistic interpretation. Although the wave shown is not a solution to Schrodinger's equation. Wavepackets can become delocalized, hear by impinging on some sort of barrier. What attribute of a particle can be in two places at the same time? Probability! To create this situation in a classroom, tape a wooden block to a stretched snaky spring and strike it.

Create the splitting of a pulse in the classroom with a stretched snaky spring. After doing this the instructor holds up a coin, buts both hands behind his back and interchanges them so nobody knows which hand has the coin when both hands are held up. "What property of a quarter can be in both hands at the same time?"

A detailed set of rules for interpreting ψ that is beyond our scope. But for reference, three fundamental features of these rules are stated:

  1. |ψ|2ΔV is the probability of the particle being inside a volume ΔV.
  2. If a wave function is a superposition of two or more states of known energy, the particle has a probability of being in any of those energy states. In particular, if ψ1 and ψ2 are normalized wavefunctions( ʃ|ψ|2dV=1), and if the (complex) amplitudes a1 and a2 are also normalized (i.e., |a1|2+|a2|2=1), then |a1|2 is the probability of having energy E1 and |a2|2 is the probability of having energy E2.
  3. If a measurement changes our understanding of the nature of any of the particle's attributes (energy, position, velocity, ...), then the wavefunction immediately rearranges itself in a process called the "collapsing of the wavefunction" .

Example 1: Minimum uncertainty within Copenhagen interpretation from repetitive measurement

We consider the perfect measurement when the dense grid of Maxwell's demons is used to detect the presence of the particle at certain coordinate at certain time who can catch the particle at the coordinates when they see it near. Let us consider the free particle with the mass m in one spatial dimension in spreading Gaussian wave packet state:

|ψ(x,t)|2=[2πΔx(t)2]1/2ex22Δx(t)2

where the spreading :Δx2(t) evolves in time

Δx(t)2=Δx(0)2+2t24m2Δx(0)2

According to the Copenhagen interpretation the position measurement will collapse the wave function to the eigenstate of the position operator (or back prepare it in this state)

xδ(xx0)=x0δ(xx0)

To measure the momentum of the particle two consecutive measurements of the position must me done separated in time by τ to find the velocity first:

pn=mxnxn1τ

While the delta function may be well approximated by a Gaussian with the infinitesimal spread ϵ

Δx(0)2=ϵ2 (the exact wave function is proportional to it)

the time evolution of the collapsed state between repetitive measurement which will be therefore

Δx(τ)2=2τ24m2ϵ2

Therefore after each measurement the wave functions reconstructs itself by the free evolution of the spreading near-delta function and is only space shifted so the demolition measurements are nonetheless done effectively on the same quantum state. We can reset the center of the coordinate system to 0 after each measurement so if |ψ(x)|2 is the probability density distribution of each square of position measurement the average over many measurements is

|ψ(x)|2x2=Δx(τ)2

The corresponding average of the momentum dispersion is immediately

|ψ(x)|2m2x2/τ2=Δp(τ)2

or

Δp(τ)2=24ϵ2+ϵ2m2τ2

Putting the between-measurement time τ infinitesimal before ϵ we get

Δx(τ)2Δp(τ)2=24

or the minimum uncertainty.

Example 2: Minimum uncertainty of position and momentum in 3 dimensions

The uncertainty relation in more dimensions is exotic in the sense that coefficients appear at the front of /2. We want the uncertainty relation for σrσp

We will use the general relation for the uncertainty for the operators A,B

σAσB12|[A^,B^]|.

We want the uncertainty relation for σrσp i.e. for the operators

r2=x2+y2+z2
p2=px2+py2+pz2

The first step is to find the auxiliary operators r~,p~ such that this relation can be used directly. We must make therefore the same trick that Dirac made to calculate the square root of the Klein-Gordon operator to get the Dirac equation:

p~=α1px+α2py+α3pz
r~=α1x+α2y+α3z

where αi are matrices from the Dirac equation:

αi2=1
αiαk+αkαi=2δik

Therefore we have

p~2=p2
r~2=r2

We can now readily calculate the commutator while using the anty-comutation properties of αi matrixes and noticing that the symmetric Gaussian state ear2 is annihilating in average the terms containing mixed variable like xpy

Calculating 9 commutators (mixed may be zero by Gaussian example) we obtain

|[r~,p~]|=3.

Therefore

σrσp32

which is 3 times (space dimension) more then for the one dimension.

Schrodinger's cat 1935

A cat, a flask of poison, and a radioactive source are placed in a sealed box. If an internal monitor detects a single atom decaying, the flask is shattered, releasing the poison that kills the cat. The Copenhagen interpretation implies that after a while, the cat is simultaneously alive and dead.

The idea that an object can be in two places at the same time is unsettling, although there seems to be little evidence that this philosophical mystery has interfered with the pursuit of experimental or even theoretical physics. Three ideas have been put forth that have become cultural icons of Quantum Mechanics. They are the EPR Paradox, Schrodingers Cat, and Bell's Theorem (which has been justifiably called “the most profound discovery of science”.[49]) Of these three cultural icons, Schrodinger's cat is easiest to grasp. Schrödinger wrote:[50]

Template:Cquote

Developments

Recent Dvelopments

Lamb shift 1947

Hydrogen energy level comparison between Bohr's model and Dirac's equation, including fine structure and denoting the Lyman alpha transitions

In 1947 Willis Lamb and Robert Retherford measured a tiny shift in the hydrogen spectrum now called the Lamb shift.[53] The result was important because it showed that a simple relativistic wave equation for the electron was not enough. Something else was affecting the atom.

That "something else" was eventually understood to be the interaction of the electron with the quantized electromagnetic field. The Lamb shift therefore became one of the early great successes of modern quantum electrodynamics.[54]

Quantum electrodynamics 1948

A Feynman diagram. Such diagrams organize calculations in quantum field theory.

By the late 1940s Richard Feynman, Julian Schwinger, and Sin-Itiro Tomonaga had developed the theory now called quantum electrodynamics (QED).[55] QED combines quantum mechanics with the electromagnetic field and describes how light and charged matter interact.

QED was revolutionary because it produced extremely accurate predictions, including corrections associated with the Lamb shift and the magnetic moment of the electron. It also introduced calculational tools that became central to later quantum field theories.

Many-worlds interpretation 1957

The quantum-mechanical "Schrödinger's cat".

In 1957 Hugh Everett III proposed the many-worlds interpretation of quantum mechanics.[56] Rather than assuming that a measurement causes the wavefunction to collapse, Everett suggested that the wavefunction always evolves according to Schrödinger's equation.

In this view, a measurement correlates observer and system, producing effectively separate branches corresponding to different outcomes. Whether this is the best interpretation remains controversial, but Everett's proposal permanently changed the discussion of the foundations of quantum mechanics.

Schrödinger's cat" paradox according to the many-worlds interpretation. In this interpretation, every quantum event is a branch point; the cat is both alive and dead, even after the box is opened, but the "alive" and "dead" cats are in different branches of the multiverse, both of which are equally real, but which do not interact with each other.

Bell's theorem 1964

In 1964 John Bell derived what is now called Bell's theorem.[57] Bell showed that any theory based on local hidden variables must satisfy certain inequalities. Quantum mechanics predicts situations in which those inequalities are violated.

Bell's theorem transformed philosophical debate into experimental science. It showed that the strange correlations predicted by quantum mechanics could be tested in the laboratory, and that "completing" quantum mechanics with local hidden variables would not work.

Quantum simulation 1981

A qubit can be represented geometrically on a Bloch sphere.

In 1981 Richard Feynman argued that classical computers are poorly suited for simulating quantum systems, and suggested that one should instead build quantum simulators.[58] This idea is one of the conceptual origins of quantum computing.

The basic insight is simple: if nature is quantum mechanical, then a controllable quantum system may efficiently imitate another quantum system. This turned the weirdness of quantum mechanics into a possible computational resource.

Quantum cryptography 1984

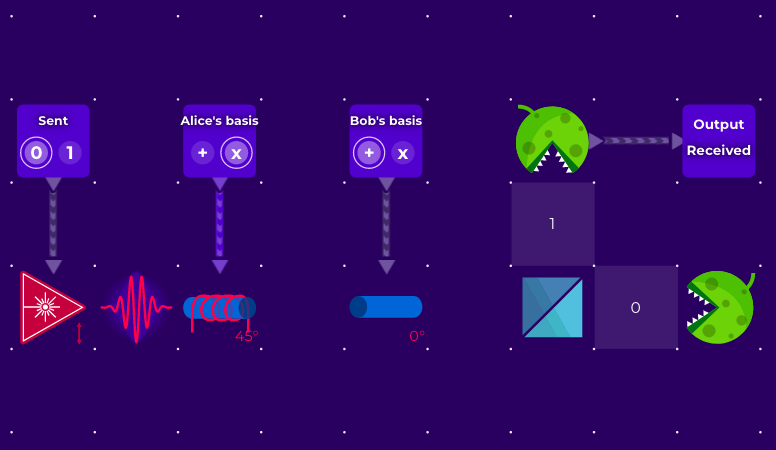

An interactive simulation of an optical implementation of the BB84 quantum key distribution protocol in the Virtual Lab by Quantum Flytrap,[59] available online. In this optical setup, bits are encoded using orthogonal polarization states of photons. Alice and Bob select their measurement bases by rotating the polarization by 0 or 45 degrees using Faraday rotators. Single-photon detectors measure the output after the photons pass through a polarizing beam splitter, which separates the polarizations.

In 1984 Charles Bennett and Gilles Brassard proposed the BB84 protocol.[60] It is the first major protocol for quantum cryptography, especially for quantum key distribution.

Its importance lies in the fact that eavesdropping on unknown quantum states generally disturbs them. This makes it possible, in principle, to detect interception of the key. BB84 showed that quantum mechanics is not only a theory of matter and radiation, but also a resource for information security.

Shor's algorithm 1994

In 1994 Peter Shor discovered Shor's algorithm, a quantum algorithm for factoring large integers in polynomial time.[61] This was a turning point in the history of quantum computing.

Its significance is practical as well as theoretical. Many classical cryptographic systems rely on the difficulty of factoring. Shor's work showed that a sufficiently powerful quantum computer would threaten such systems and therefore gave the field a major strategic and scientific push.

Diagram presenting the encryption and the decryption of a document using asymmetric cryptography. Some forms of encryption (including asymmetric cryptography) are at risk of being broken by future quantum computers.

Quantum error correction 1995

Quantum circuit to encode a single logical qubit with the Shor code. E indicates an error and the rest of the circuit to the right decodes the state.

One of the apparent obstacles to quantum computing is that quantum states are easily disturbed by noise and decoherence. In 1995, schemes for quantum error correction were developed that showed this obstacle was not fatal.[62]

Quantum error correction works by encoding one logical qubit into a larger entangled state of several physical qubits. Although unknown quantum states cannot be copied, they can still be protected by cleverly distributing information so that certain errors can be detected and corrected.

Quantum teleportation 1998

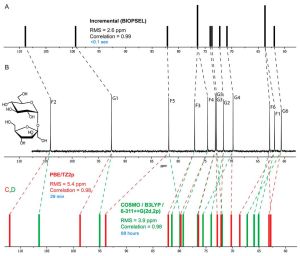

Comparative prediction of the 13C NMR spectrum of sucrose using various methods.

In 1998 experimental groups demonstrated early forms of quantum teleportation.[63] Quantum teleportation does not move matter itself from place to place. Instead, it transfers the quantum state of one system to another distant system.

Teleportation requires two ingredients: entanglement and an ordinary classical communication channel. It is one of the clearest demonstrations that quantum information behaves differently from classical information.

Comparative prediction of the 13C NMR spectrum of sucrose using various methods. Experimental spectrum is in the middle. Upper spectrum (black) was obtained by empirical routine. Lower spectra (red and green) were obtained by quantum-chemical calculations in PRIRODA and GAUSSIAN respectively. Included information: used theory level/basis set/solvent model, accuracy of prediction (linear correlation factor and root mean square deviation), calculation time on personal computer (blue).

Experimental Shor demonstration 2001

Schematic video demonstrating individual steps of quantum teleportation. A quantum state Q is sent from station A to station B using a pair of entangled particles created by source S. Station A measures its two particles and communicates the result to station B, which chooses an appropriate device based on the received message. Due to the action of the device, the state of the particle of station B turns into Q.

In 2001 a small-scale experimental implementation of Shor's algorithm was reported.[64] The number factored was tiny, but the importance of the experiment was symbolic: it showed that nontrivial quantum algorithms could be realized in the laboratory.

Such demonstrations did not yet threaten real-world cryptography, but they helped establish quantum computing as an experimental discipline rather than merely a theoretical possibility.

Higgs boson 2012

Higgs boson observed at CERN.

In 2012 experiments at CERN announced the discovery of the Higgs boson.[65] Strictly speaking, this belongs more naturally to high-energy particle physics and quantum field theory than to nonrelativistic quantum mechanics.

Nevertheless, it is historically relevant because it confirmed a central part of the quantum field-theoretic description of fundamental particles. It also illustrates how the quantum viewpoint ultimately extends far beyond atoms and light.

Loophole-free Bell tests 2015

Scheme of a "two-channel" Bell test

In 2015 several groups reported loophole-free Bell test experiments.[66] Earlier Bell tests strongly supported quantum mechanics, but skeptics could point to experimental "loopholes" such as imperfect detection or possible communication between devices.

The 2015 experiments were designed to close the major loopholes simultaneously. Their results further strengthened the conclusion that nature violates Bell inequalities in the way predicted by quantum mechanics. The source S produces pairs of "photons", sent in opposite directions. Each photon encounters a two-channel polariser whose orientation can be set by the experimenter. Emerging signals from each channel are detected and coincidences counted by the coincidence monitor CM.

Quantum supremacy claim 2019

Demonstrating Quantum Supremacy
In 2019 Google announced that its quantum processor had performed a specific computation faster than a known classical alternative, and described the result as quantum supremacy.[67]

The term itself is controversial, and the practical importance of the particular benchmark was debated. Even so, the announcement marked an important moment in public awareness of quantum computing and intensified work on useful quantum advantage.

Entanglement Nobel Prize 2022

‘Spooky’ quantum entanglement in solid materials

In 2022 the Nobel Prize in Physics was awarded to Alain Aspect, John Clauser, and Anton Zeilinger for experiments involving entangled photons and tests of Bell inequalities.[68]

This award was historically important because it recognized that foundational questions once treated as philosophical had become central experimental physics. Entanglement is now also a practical resource in quantum information science.



Fault-tolerant progress 2023

Illustration of different quantum computing paradigms

In 2023 researchers reported further progress in fault-tolerant quantum computing and in experiments showing that logical qubits can be protected better than the underlying physical qubits.[69]

This matters because large-scale quantum computing requires not merely a few good qubits, but a scalable architecture in which errors can be suppressed faster than they accumulate. Quantum error correction therefore remains central to the field.

Scalable processors and error correction 2024

In 2024 work continued on larger and more reliable quantum processors, improved control systems, and better implementations of error-correcting codes.[70] These advances did not yet amount to fully general fault-tolerant quantum computing, but they represented steady progress toward that goal.

By this stage, the field had clearly moved beyond proof-of-principle demonstrations and into engineering questions involving architecture, fabrication, calibration, and error management.

Quantum computing and networking 2025

In 2025 research continued on fault-tolerant quantum computers and on the development of quantum networks, including protocols for distributed entanglement and secure communication.[71]

Whether these efforts soon produce broadly useful machines remains uncertain, but they show that quantum mechanics has evolved from a theory explaining atomic spectra into a framework supporting new technologies for computation, communication, and sensing.

See also

Index

Core theory Foundations Conceptual and interpretations Mathematical structure and systems Atomic and spectroscopy Wavefunctions and modes Quantum dynamics and evolution Measurement and information Quantum information and computing

Applications and extensions Quantum optics and experiments Open quantum systems Quantum field theory Statistical mechanics and kinetic theory Condensed matter and solid-state physics Plasma and fusion physics Timeline Advanced and frontier topics

Quantum Book II

  • Matter by scale
  • Quantum Book III

  • Methods and tools
  • Quantum Book IV

  • Data Analysis Techniques
  • Full contents

      Foundations

    1. Physics:Quantum basics
    2. Physics:Quantum Postulates
    3. Physics:Quantum Hilbert space
    4. Physics:Quantum Observables and operators
    5. Physics:Quantum mechanics
    6. Physics:Quantum mechanics measurements
    7. Physics:Quantum state
    8. Physics:Quantum system
    9. Physics:Quantum superposition
    10. Physics:Quantum probability
    11. Physics:Quantum Mathematical Foundations of Quantum Theory
    12. Conceptual and interpretations

    13. Physics:Quantum Interpretations of quantum mechanics
    14. Physics:Quantum Wave–particle duality
    15. Physics:Quantum Complementarity principle
    16. Physics:Quantum Uncertainty principle
    17. Physics:Quantum Measurement problem
    18. Physics:Quantum Bell's theorem
    19. Physics:Quantum Hidden variable theory
    20. Physics:Quantum nonlocality
    21. Physics:Quantum contextuality
    22. Physics:Quantum Darwinism
    23. Physics:Quantum A Spooky Action at a Distance
    24. Physics:Quantum A Walk Through the Universe
    25. Physics:Quantum The Secret of Cohesion and How Waves Hold Matter Together
    26. Physics:Quantum measurement problem
    27. Mathematical structure and systems

    28. Physics:Quantum Density matrix
    29. Physics:Quantum Exactly solvable quantum systems
    30. Physics:Quantum Formulas Collection
    31. Physics:Quantum A Matter Of Size
    32. Physics:Quantum Symmetry in quantum mechanics
    33. Physics:Quantum Angular momentum operator
    34. Physics:Quantum Runge–Lenz vector
    35. Physics:Quantum Approximation Methods
    36. Physics:Quantum Matter Elements and Particles
    37. Physics:Quantum Dirac equation
    38. Physics:Quantum Klein–Gordon equation
    39. Physics:Quantum pendulum
    40. Physics:Quantum configuration space
    41. Atomic and spectroscopy

      Quantum atomic structure and spectroscopy: orbitals, energy levels, and emission and absorption spectra.
      Quantum atomic structure and spectroscopy: orbitals, energy levels, and emission and absorption spectra.
    42. Physics:Quantum Atomic structure and spectroscopy
    43. Physics:Quantum Hydrogen atom
    44. Physics:Quantum number
    45. Physics:Quantum Multi-electron atoms
    46. Physics:Quantum Fine structure
    47. Physics:Quantum Hyperfine structure
    48. Physics:Quantum Isotopic shift
    49. Physics:Quantum defect
    50. Physics:Quantum Zeeman effect
    51. Physics:Quantum Stark effect
    52. Physics:Quantum Spectral lines and series
    53. Physics:Quantum Selection rules
    54. Physics:Quantum Fermi's golden rule
    55. Physics:Quantum beats
    56. Wavefunctions and modes

      A quantum wavefunction showing probability amplitude in space; the square of its magnitude gives the probability density.
      A quantum wavefunction showing probability amplitude in space; the square of its magnitude gives the probability density.
    57. Physics:Quantum Wavefunction
    58. Physics:Quantum Superposition principle
    59. Physics:Quantum Eigenstates and eigenvalues
    60. Physics:Quantum Boundary conditions and quantization
    61. Physics:Quantum Standing waves and modes
    62. Physics:Quantum Normal modes and field quantization
    63. Physics:Number of independent spatial modes in a spherical volume
    64. Physics:Quantum Density of states
    65. Physics:Quantum carpet
    66. Quantum dynamics and evolution

    67. Physics:Quantum Time evolution
    68. Physics:Quantum Schrödinger equation
    69. Physics:Quantum Time-dependent Schrödinger equation
    70. Physics:Quantum Stationary states
    71. Physics:Quantum Perturbation theory
    72. Physics:Quantum Time-dependent perturbation theory
    73. Physics:Quantum Adiabatic theorem
    74. Physics:Quantum Scattering theory
    75. Physics:Quantum S-matrix
    76. Physics:Quantum tunnelling
    77. Physics:Quantum speed limit
    78. Physics:Quantum revival
    79. Physics:Quantum reflection
    80. Physics:Quantum oscillations
    81. Physics:Quantum jump
    82. Physics:Quantum boomerang effect
    83. Physics:Quantum chaos
    84. Measurement and information

    85. Physics:Quantum Measurement theory
    86. Physics:Quantum Measurement operators
    87. Physics:Quantum Projective measurement
    88. Physics:Quantum POVM
    89. Physics:Quantum Weak measurement
    90. Physics:Quantum Measurement collapse
    91. Physics:Quantum entanglement
    92. Physics:Quantum Zeno effect
    93. Physics:Quantum limit
    94. Quantum information and computing

    95. Physics:Quantum information theory
    96. Physics:Quantum Qubit
    97. Physics:Quantum Entanglement
    98. Physics:Quantum Gates and circuits
    99. Physics:Quantum Computing Algorithms in the NISQ Era
    100. Physics:Quantum Noisy Qubits
    101. Physics:Quantum random access code
    102. Physics:Quantum pseudo-telepathy
    103. Physics:Quantum network
    104. Physics:Quantum money
    105. Quantum optics and experiments

      Experimental quantum physics: qubits, dilution refrigerators, quantum communication, and laboratory systems.
      Experimental quantum physics: qubits, dilution refrigerators, quantum communication, and laboratory systems.
    106. Physics:Quantum Nonlinear King plot anomaly in calcium isotope spectroscopy
    107. Physics:Quantum optics beam splitter experiments
    108. Physics:Quantum Ultra fast lasers
    109. Physics:Quantum Experimental quantum physics
    110. Physics:Quantum optics
    111. Template:Quantum optics operators
    112. Open quantum systems

    113. Physics:Quantum Open systems
    114. Physics:Quantum Master equation
    115. Physics:Quantum Lindblad equation
    116. Physics:Quantum Decoherence
    117. Physics:Quantum dissipation
    118. Physics:Quantum Markov semigroup
    119. Physics:Quantum Markovian dynamics
    120. Physics:Quantum Non-Markovian dynamics
    121. Physics:Quantum Trajectories
    122. Quantum field theory

      Structural dependency map of quantum field theory.
    123. Physics:Quantum field theory (QFT) basics
    124. Physics:Quantum field theory (QFT) core
    125. Physics:Quantum Fields and Particles
    126. Physics:Quantum Second quantization
    127. Physics:Quantum Harmonic Oscillator field modes
    128. Physics:Quantum Creation and annihilation operators
    129. Physics:Quantum vacuum fluctuations
    130. Physics:Quantum Propagators in quantum field theory
    131. Physics:Quantum Feynman diagrams
    132. Physics:Quantum Path integral formulation
    133. Physics:Quantum Renormalization in field theory
    134. Physics:Quantum Renormalization group
    135. Physics:Quantum Field Theory Gauge symmetry
    136. Physics:Quantum Non-Abelian gauge theory
    137. Physics:Quantum Electrodynamics (QED)
    138. Physics:Quantum chromodynamics (QCD)
    139. Physics:Quantum Electroweak theory
    140. Physics:Quantum Standard Model
    141. Physics:Quantum triviality
    142. Physics:Quantum confinement problem
    143. Statistical mechanics and kinetic theory

    144. Physics:Quantum Statistical mechanics
    145. Physics:Quantum Partition function
    146. Physics:Quantum Distribution functions
    147. Physics:Quantum Liouville equation
    148. Physics:Quantum Kinetic theory
    149. Physics:Quantum Boltzmann equation
    150. Physics:Quantum BBGKY hierarchy
    151. Physics:Quantum Relaxation and thermalization
    152. Physics:Quantum Thermodynamics
    153. Condensed matter and solid-state physics

    154. Physics:Quantum Band structure
    155. Physics:Quantum Fermi surfaces
    156. Physics:Quantum Semiconductor physics
    157. Physics:Quantum Phonons
    158. Physics:Quantum Electron-phonon interaction
    159. Physics:Quantum Superconductivity
    160. Physics:Quantum Topological phases of matter
    161. Physics:Quantum well
    162. Physics:Quantum spin liquid
    163. Physics:Quantum spin Hall effect
    164. Physics:Quantum phase transition
    165. Physics:Quantum critical point
    166. Physics:Quantum dot
    167. Plasma and fusion physics

      Conceptual illustration of plasma physics in a fusion context, showing magnetically confined ionized gas in a tokamak and the collective behavior governed by electromagnetic fields and transport processes.
      Conceptual illustration of plasma physics in a fusion context, showing magnetically confined ionized gas in a tokamak and the collective behavior governed by electromagnetic fields and transport processes.
    168. Physics:Quantum Fusion reactions and Lawson criterion
    169. Physics:Quantum Plasma (fusion context)
    170. Physics:Quantum Magnetic confinement fusion
    171. Physics:Quantum Inertial confinement fusion
    172. Physics:Quantum Plasma instabilities and turbulence
    173. Physics:Quantum Tokamak core plasma
    174. Physics:Quantum Tokamak edge physics and recycling asymmetries
    175. Physics:Quantum Stellarator
    176. Timeline

    177. Physics:Quantum mechanics/Timeline
    178. Physics:Quantum mechanics/Timeline/Pre-quantum era
    179. Physics:Quantum mechanics/Timeline/Old quantum theory
    180. Physics:Quantum mechanics/Timeline/Modern quantum mechanics
    181. Physics:Quantum mechanics/Timeline/Quantum field theory era
    182. Physics:Quantum mechanics/Timeline/Quantum information era
    183. Physics:Quantum mechanics/Timeline/Quantum technology era
    184. Physics:Quantum mechanics/Timeline/Quiz
    185. Advanced and frontier topics

    186. Physics:Quantum topology
    187. Physics:Quantum battery
    188. Physics:Quantum Supersymmetry
    189. Physics:Quantum Black hole thermodynamics
    190. Physics:Quantum Holographic principle
    191. Physics:Quantum gravity
    192. Physics:Quantum De Sitter invariant special relativity
    193. Physics:Quantum Doubly special relativity
    194. Physics:Quantum arithmetic geometry
    195. Physics:Quantum unsolved problems
    196. Physics:Quantum Yang-Mills mass gap
    197. Physics:Quantum gravity problem
    198. Physics:Quantum black hole information paradox
    199. Physics:Quantum dark matter problem
    200. Physics:Quantum neutrino mass problem
    201. Physics:Quantum matter-antimatter asymmetry problem

    Physics:Quantum_mechanics/Timeline/Quiz/

    See the subpage for a quiz on this topic.

    References and Endnotes

    1. https://en.wikipedia.org/wiki/Quantum_mechanics
    2. https://en.wikipedia.org/wiki/Old_quantum_theory
    3. https://en.wikipedia.org/w/index.php?title=Matrix_mechanics&oldid=577613976
    4. This analysis assumes that the speed is much less than that of light (i.e. Wikipedia:nonrelativistic).
    5. There is a fourth condition for quantum mechanics to occur: when elementary particles collide at very high energy, they can interact with each in such a way as to create new particles. This is the field of High Energy Physics (or particle physics), and will not be part of our discussion, except in one minor way. In the Compton effect, the x-ray was "high energy" (in those days) and acts as a classical particle (like a billiard ball) that rips apart the atom.
    6. Planck thought (perhaps correctly?) that it is not light but the way atoms behaved that was quantized.
    7. https://en.wikipedia.org/wiki/History_of_quantum_mechanics
    8. This and Planck's work begin to establish wave-particle duality for electromagnetic radiation.
    9. Taylor, G. I. (1909).
    10. https://en.wikipedia.org/wiki/Bohr_model
    11. https://en.wikipedia.org/wiki/Compton_scattering
    12. https://en.wikipedia.org/wiki/Matter_wave
    13. https://en.wikipedia.org/wiki/Born_rule
    14. https://en.wikipedia.org/wiki/Davisson%E2%80%93Germer_experiment
    15. https://en.wikipedia.org/wiki/Uncertainty_principle
    16. https://en.wikipedia.org/wiki/EPR_paradox
    17. https://en.wikipedia.org/wiki/Lamb_shift
    18. https://en.wikipedia.org/wiki/Quantum_electrodynamics
    19. https://en.wikipedia.org/wiki/Many-worlds_interpretation
    20. https://en.wikipedia.org/wiki/Bell%27s_theorem
    21. https://en.wikipedia.org/wiki/Quantum_computing
    22. https://en.wikipedia.org/wiki/BB84
    23. https://en.wikipedia.org/wiki/Shor%27s_algorithm
    24. https://en.wikipedia.org/wiki/Quantum_error_correction
    25. https://en.wikipedia.org/wiki/Quantum_teleportation
    26. https://en.wikipedia.org/wiki/Shor%27s_algorithm
    27. https://en.wikipedia.org/wiki/Higgs_boson
    28. https://en.wikipedia.org/wiki/Bell_test_experiments
    29. https://en.wikipedia.org/wiki/Quantum_supremacy
    30. https://www.nobelprize.org/prizes/physics/2022/summary/
    31. https://en.wikipedia.org/wiki/Quantum_error_correction
    32. https://en.wikipedia.org/wiki/Quantum_computing
    33. https://en.wikipedia.org/wiki/Quantum_technology
    34. Kuhn, T. S. (1978). Black-body theory and the quantum discontinuity 1894-1912. Oxford: Clarendon Press. ISBN 0195023838.
    35. Mason, P. (1981). The Light Fantastic. Penguin Books. ISBN 978-0-14-006129-1.
    36. Young, T. (1802). "The Bakerian Lecture: On the Theory of Light and Colours". Philosophical Transactions of the Royal Society of London 92: 12–48.
    37. Taylor, Geoffrey Ingram. "Interference fringes with feeble light." Proceedings of the Cambridge Philosophical Society. Vol. 15. No. 1. 1909.
    38. https://en.wikipedia.org/w/index.php?title=Double-slit_experiment&oldid=618587827
    39. Incidentally, this equation also holds for photons, where p=h/λ is the photon's momentum.
    40. https://en.wikipedia.org/wiki/Bohr_model
    41. L. de Broglie, Recherches sur la théorie des quanta (Researches on the quantum theory), Thesis (Paris), 1924; L. de Broglie, Ann. Phys. (Paris) 3, 22 (1925).
    42. https://en.wikipedia.org/wiki/Schrodinger
    43. https://en.wikipedia.org/wiki/Quantum_mechanics
    44. Moore, W.J. (1992). Schrödinger: Life and Thought. Cambridge University Press. p. 219. ISBN 0-521-43767-9.
    45. Moore, W.J. (1992). Schrödinger: Life and Thought. Cambridge University Press. p. 220. ISBN 0-521-43767-9.
    46. It is clear that even in his last year of life, as shown in a letter to Max Born, that Schrödinger never accepted the Copenhagen interpretation (cf. p. 220). Moore, W.J. (1992). Schrödinger: Life and Thought. Cambridge University Press. p. 479. ISBN 0-521-43767-9.
    47. Hugh D. Young, Roger A. Freedman: University Physics, Ed. 11. Pearson Education, Addison Wesley, San Francisco 2004, 0-321-20469-7, S. 1493-1494.
    48. https://en.wikipedia.org/w/index.php?title=Davisson%E2%80%93Germer_experiment&oldid=580087519
    49. Henry P. Stapp, "Bell's Theorem and World Process", Nuovo Cimento, Vol. 29B, No. 2, p. 270 (1975). (Quote on p. 271)
    50. Schroedinger: "The Present Situation in Quantum Mechanics." 5. Are the Variables Really Blurred?
    51. in what might be the most philosophically profound experiment ever performed
    52. http://www.nature.com/news/2010/100317/full/news.2010.130.html Andrew Cleland at the University of California, Santa Barbara, and his team cooled a tiny metal paddle until it reached its quantum mechanical 'ground state' — the lowest-energy state permitted by quantum mechanics. They then used the weird rules of quantum mechanics to simultaneously set the paddle moving while leaving it standing still.
    53. https://en.wikipedia.org/wiki/Lamb_shift
    54. https://en.wikipedia.org/wiki/Quantum_electrodynamics
    55. https://en.wikipedia.org/wiki/Quantum_electrodynamics
    56. https://en.wikipedia.org/wiki/Many-worlds_interpretation
    57. https://en.wikipedia.org/wiki/Bell%27s_theorem
    58. https://en.wikipedia.org/wiki/Quantum_computing
    59. Migdał, Piotr; Jankiewicz, Klementyna; Grabarz, Paweł; Decaroli, Chiara; Cochin, Philippe (2022). "Visualizing quantum mechanics in an interactive simulation - Virtual Lab by Quantum Flytrap". Optical Engineering 61 (8). doi:10.1117/1.OE.61.8.081808.
    60. https://en.wikipedia.org/wiki/BB84
    61. https://en.wikipedia.org/wiki/Shor%27s_algorithm
    62. https://en.wikipedia.org/wiki/Quantum_error_correction
    63. https://en.wikipedia.org/wiki/Quantum_teleportation
    64. https://en.wikipedia.org/wiki/Shor%27s_algorithm
    65. https://en.wikipedia.org/wiki/Higgs_boson
    66. https://en.wikipedia.org/wiki/Bell_test_experiments
    67. https://en.wikipedia.org/wiki/Quantum_supremacy
    68. https://www.nobelprize.org/prizes/physics/2022/summary/
    69. https://en.wikipedia.org/wiki/Quantum_error_correction
    70. https://en.wikipedia.org/wiki/Quantum_computing
    71. https://en.wikipedia.org/wiki/Quantum_technology
    Author: Harold Foppele
